Operation

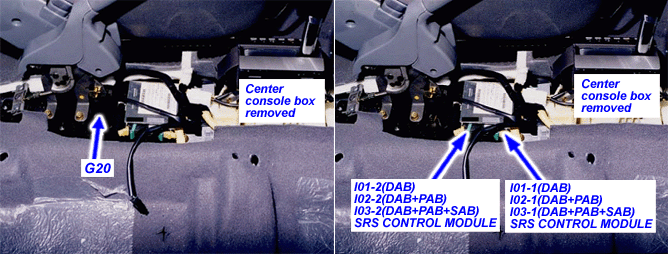

SRSCM may set a diagnostic trouble code B2600 if it detects open or short on SRSCM ground connector ,which is next to SRSCM.
SRSCM sets a diagnostic trouble code B2600 if it detects open or short on SRSCM ground.
Item
Detecting Condition
Possible Cause
DTC Strategy
? No case attachment present
? Open circuit in the system
Enable Conditions
? Ignition "ON"
Threshold Value
? R_CASE > 500 Ohm
Diagnostic Time
Qualification
? More than 2 sec remaining
De-Qualification
? More than 10 sec remaining
