Operation

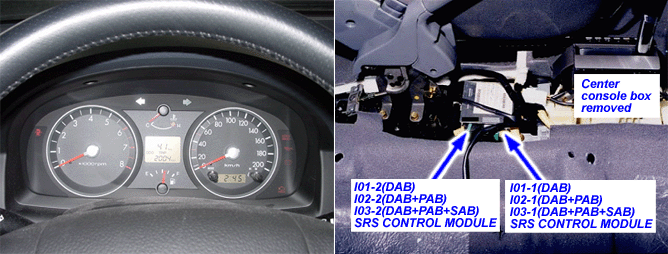

SRS warning lamp is located in the cluster. When the airbag system is normal, the SRI flashes for approx. 6 seconds after the ignition switch is turned ON. And then turns off automatically. If there is a malfunction in the airbag system. The SRI lights up to inform the driver of the abnormality. the SRSCM shall measure the voltage at the airbag SRI(malfunction indicator lamp)output pin, both when the lamp is on and when the lamp is off, to detect whether the commanded stste matches the actual states. one of the SRS warning lamp related socket among two is to turn on, off SRS warning lamp when SRSCM connector is linked. the other socket is to turn on, off SRS warning lamp when SRSCM connector is unlinked.
SRSCM sets a diagnostic trouble code B2504 if it detects short to B+ on SRS warning lamp.
Item
Detecting Condition
Possible Cause
DTC Strategy
? When the malfunction in the SRS warning system
? Open circuit in the system
? Warning light bulb
? Fuse
Enable Conditions
? Ignition "ON"
Threshold Value
? Short circuit resistance <= 10 Ohm
Diagnostic Time
Qualification
? More than 2 sec remaining
De-Qualification
? More than 10 sec remaining
Test Condition
Voltage (V)
Ignition ON
9~14V
