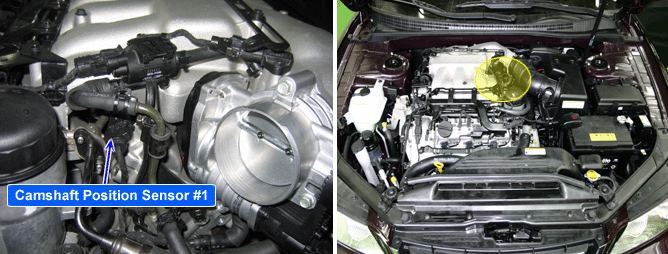

The Camshaft Position Sensor (CMPS) is a sensor that detects the compression TDC of the NO. 1 cylinder. The CMPS consists of a hall type sensor and a target on the end of the intake camshaft. When the target triggers the sensor, the sensor voltage is 5V. If not, the sensor voltage is 0V. These CMPS signal is sent to the PCM and the PCM uses the CMPS signal for synchronizing the firing of sequential fuel injectors.
If PCM detects that cam event signal count is over 3 under detecting condition, PCM sets P0340. MIL(Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle.
Item
Detecting Condition
Possible cause
DTC Strategy
? Check if CAM sensor is synchronized correctly
? Poor connection
? Open in harness
? CMPS(Bank 1)
? PCM
Enable Conditions
? Engine running state
Threshold value
? Cam event signal count = 3
Diagnosis Time
? Continuous
MIL On Condition
? 2 driving cycles
