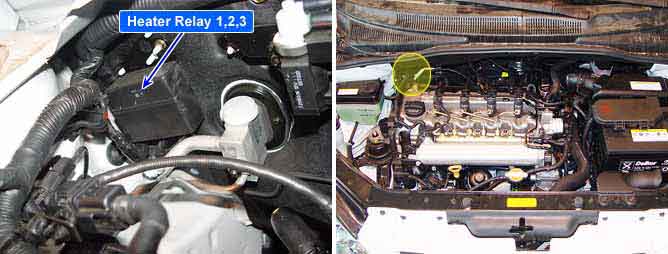

Component Location
General Description
Because thermal efficiency of electronically controlled diesel engine is higher than that of gasoline engine, heat loss to cylinder wall is lower. This enables electronically controlled diesel engine to generate high power and have high fuel efficiency.
However in other point of view, due to low engine coolant temperature, heating efficiency lowered then, driver is unsatisfied with the heating. To cope with this situation, PTC heater is installed in coolant line and it raises heating efficiency and raise coolant temperature.
? Heater relay operating condition : When all the following condition are met.
Blower ON, Engine speed below 700RPM, Battery voltage above 12.5V, Aircon OFF, Air temperature below 5?, engine coolant temperature below 70? - Maximum operating duration is limited to 40 min.
DTC Description
P1634 is set when excessive current or "0"A is detected in heater relay control circuit for more than 1.0 sec. at heater relay operating condition. This code is due to 1)open or 2)short to battery or ground in heater relay control circuit or 3)component problem.
DTC Detecting Condition
Item | Detecting Condition | Possible Cause |
DTC Strategy | ? Voltage monitoring | ? PTC heater relay #1control circuit ? Heater relay component |
Enable Conditions | ? IG KEY "ON" (monitoring only performed at relay operating condition) |
Threshold Value | ? Short to Battery ? Short to GND, wiring open |
Diagnostic Time | ? 1.0 sec. |
Fail Safe | Fuel Cut | NO | |
EGR Off | NO |
Fuel Limit | NO |
Check Lamp | NO |
Specification
Heater relay coil resistance | PTC heater operating temperature | PTC heater operating condition |
80±5? (20?) | Refer to "General Information" | Refer to "General Information" |
Schematic Diagram
