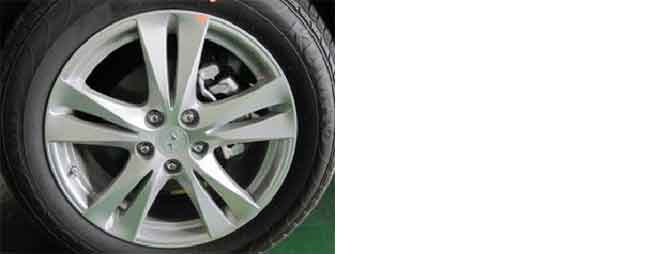

Component Location
General Description
The TPMS system is the shorten word of Tire Pressure Monitoring System. This system monitors the pressure of the tire and when it drops below a certain pressure, the TPMS ECU makes the warning lamp turn on for notifying the driver. This system consists of TPMS ECU(or TPMS Receiver), Initiators and TPMS sensors. Among components of TPMS system, the TPMS sensor is installed at each wheel rim. and its role is to measure the air pressure and the temperature of the tire and then it transmits its signals to TPMS ECU. The communication from TPMS sensors is done via RF(Radio Frequency) at a frequency.
DTC Description
This DTC indicates that “L/Line WE sensor” was installed to a H/Line system incorrectly.
DTC Detecting Condition
Item | Detecting Condition | Possible Cause |
DTC Strategy | Check RF message from WE sensor
| L/Line RL WE sensor has been Installed.
|
Enable Conditions | IG KEY ON
|
Threshold value | RL WE sensor datagram information byte indicates “L/Line WE” for a H/Line system
1 received
|
