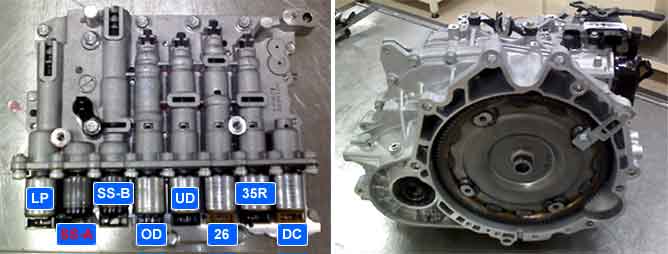

Shift solenoid valve is ON/OFF type and changed a way of oil direction. PCM/TCM control solenoid valve to set gear speed position.
This code is set when circuit open or short detected by PCM/TCM.
Item
Detecting Condition
Possible Cause
DTC Strategy
Monitoring voltage range(Circuit open/short check)
Circuit open or short
SS-A solenoid valve
PCM/TCM
Enable Conditions
Completely opened or closed
Gaer tightening
After change of speed > 0.3sec
10V < Solenoid supplied power < 16V
Threshold value
50mA = Feedback current(Circuit short) = 550mA at operating
50mA > Feedback current (Circuit open ) at operating
Detecting Time
More than 0.2sec
Fail safe
Locked into 4th gear
Solenoid
SS-A
SS-B
OD
N-H
35R
UD
26
N-L
N,P
?
1st
2nd
3rd
4th
5th
6th
L
REV
? : Connected status
? : Connedted at Vehicle speed above 8km/h
Clutch
Brake
OD C
26 B
UD B
LR B
O.W.
P,N
R
D1
D2
D3
D4
D5
D6
? : Operated at Vehicle speed under 5km/h
Working voltage: under 7.5v (Supplied perssure 5.0kgf/?, Oil temperature 85?)
Release voltage: under 5.5v (Supplied perssure 5.0kgf/?, Oil temperature 85?)
Release current: under 5.5v (Supplied perssure 0.51kgf/?, Oil temperature 85?)
Inetrnal resistance : 10 ~ 11 O( 20?)
