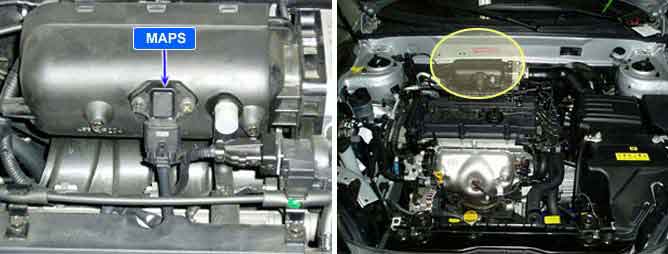

The Manifold Absolute Pressure(MAP) sensor measures the change of pressure in the intake manifold. The pressure of intake manifold is changed as variable engine running condition and converted into voltage and then it is monitored by the ECM.
ECM sets DTC P0107 if the ECM detects signal voltage lower than threshold of the possible range of a properly operating MAP sensor.
Item
Detecting Condition
Possible cause
DTC Strategy
? Signal check, Low
? Contact resistance in connections.
? Open or Short to ground in power circuit
? Short to ground in signal circuit
? Faulty MAP sensor
? Faulty ECM
Enable Conditions
Threshold Value
? Sensor output voltage < 0.25 V
Diagnostic Time
? 5 sec
MIL ON Condition
? 3 Driving Cycle

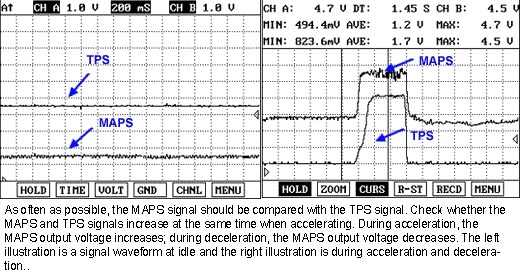

TPS
MAPS
Resistance
Output voltage at curb idle
0.7~3.0k?
0.1~0.875V
0.5~2.0V
PRESSURE [kPa]
20
35
60
95
107
Uout [V]
0.789
1.382
2.369
3.75
4.224
