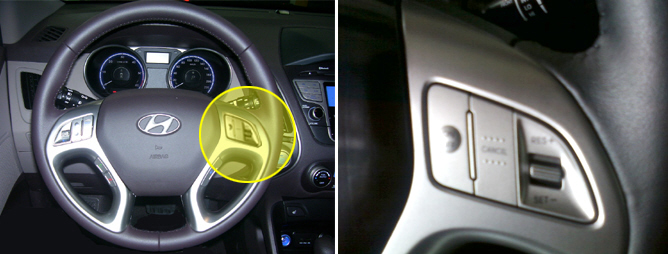

The cruise control system keeps the vehicle running at a fixed speed until a signal canceling this fixed speed is received. When the main switch is turned on with vehicle in the running mode, the battery voltage is applied to the ECM. When a signal from the control switch is input to the ECM while the vehicle is in state, the ECM controls the ETS motor to make a car go at a steady speed you want. Also, while the system is operating, "CRUISE" indicator lamp in the meter assembly lights up.
If the swich signal’s voltage is not within the calibrated ranges when ECM checks the switch signal under detecting condition, ECM sets P0564.
Item
Detecting Condition
Possible Cause
DTC Strategy
Monitors the status of the invalid input when the input voltage is converted to the switch input signals.
Poor connection
Open or short in cruise switch circuit
Faulty cruise switch
Faulty ECM
Enable Conditions
Engine running
Ignition voltage = 9V
Cruise control system type is learned
Threshold value
Invalid switch signal is monitored
Diagnosis Time
More than 7.8 seconds failure for 9.36 seconds test
MIL On Condition
NO MIL
Resistance(?)
ON/OFF switch
3.9 k? ± 5%
SET switch
220 ? ± 5%
RESUME switch
910 ? ± 5%
CANCEL switch
0 ? ± 5%
