CAN communication is a parallel circuit to interchange information among each units. CAN communication can share much information with units more faster and more efficiently by using specified language.
CAN-High line is twisted with CAN-Low line as a purpose in preventing from a noise.
The operating duty of EMC is maintained at 100 : 0 (2WD) for guaranteeing stabilized driving force, accuracy of the control during inside ABS, FTCS, ESP control.

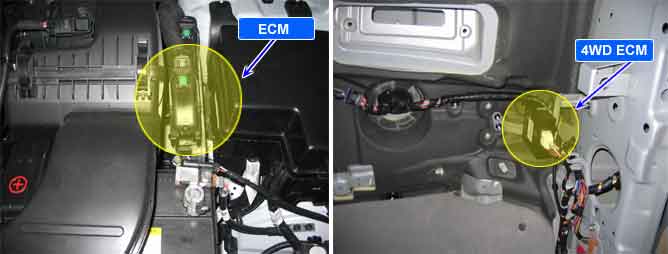

The 4WD ECM sets DTC U0100 if it doesn't receive APS signals from ECM.
Item
Detecting Condition
Possible cause
DTC Strategy
Signal monitoring
Poor connection
Power supply to each Module
Open or short in PCM communication line
Open or short in 4WD ECM communication line
120? register( Inside cluster)
PCM
Enable conditions
IG ON
Threshold value
When APS signals are not inputted
MIL ON Condition
Lamp OFF
