The ABS ECU(Electronic Control Unit) checks the battery voltage and generator output voltage to determine, as a safety issue, whether the ABS system can operate normally or not.
The normal battery voltage range is essential for controlling the ABS system as intended.
The ABS ECU monitors battery voltage and alternator output voltage.
When the voltage is higher than the expected normal value, this code is set, and the ABS/EBD/ESP/DBC functions are prohibited.
If the voltage recovers, to within normal operating ranges, then the controller returns to normal operation as well.
Item
Detecting Condition
Possible cause
DTC Strategy
Battery Voltage Monitoring

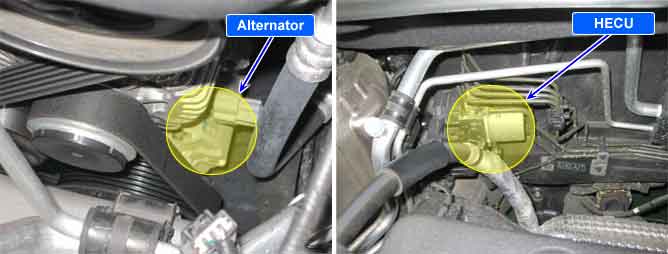

Poor connection in power supply circuit (IGN+)
Faulty Alterator
Faulty HECU
Enable Conditions
When Vign>17V±0.5V is continued for 500msec.
- If the voltage recovers to normal operating range, the controller returns to normal state.
Fail Safe
The ABS/EBD/ESP/DBC functions are inhibited.
The ABS/EBD/ESP/DBC warning lamps are activated.
Normal Voltage Range
ENG "ON"
10V ~ 16V
