P0706 Transmission Range Sensor Circuit Range/Performance

AutoHex Online Help: Hyundai TUCSON/ix35(LM/EL) 2012

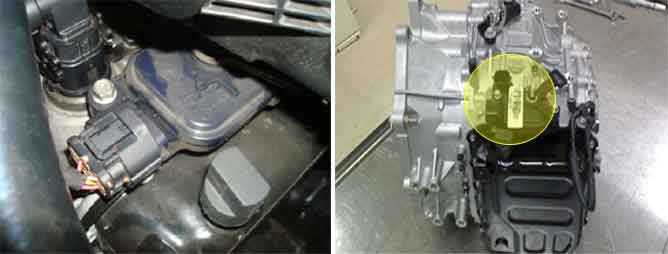

Component Location
General Description

Shift lever positions P-range(Parking), R-range(Reverse), N-range(Neutral) and D-range(Driving) are changed by driver need and lever position is sent to PCM/TCM to control a gear ration.



DTC Description

This code is set when undefined range signal is input to PCM/TCM without specific of transmission pattern table. (See below)

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

Circuit Range/performance

Circuit short or open

Shift range signal error

PCM/TCM

Enable Conditions

Battery voltage > 10V

Engine speed > 1500RPM

Threshold value

TR switch Invalid range signal

Detecting Time

More than 10sec

Fail safe

Normal status : All position possible

Abnormal status : Above 3rd position possible

(3rd ~ 6th possible, 1st/2nd impossible)

Specification

P

P-R

R

R-N

N

N-D

D

D-X

X

X-Y

Y

Y-Z

Z

S1

1

0

0

0

1

1

1

1

1

1

0

0

0

S2

0

0

0

1

1

0

0

1

1

0

0

1

1

S3

1

1

0

0

0

0

0

0

1

1

1

1

1

S4

1

1

1

1

1

1

0

0

0

0

0

0

1

Diagnostic Circuit Diagram
Signal Waveform & Data
