Several control units are applied to electronically controlled vehicles. These units perform each control with informations from various sensors. Thus, sharing signal information from sensors is needed, so CAN communication type whose communication speed is high and insensitive to electrical noise by spark generation is adopted to controlling power-train(PCM(TCM/ECM),CLUSTER,ESP,4WD,EPS). CAN communication consists of CAN BUS HIGH, CAN BUS LOW and two 120? resistances in circuit.

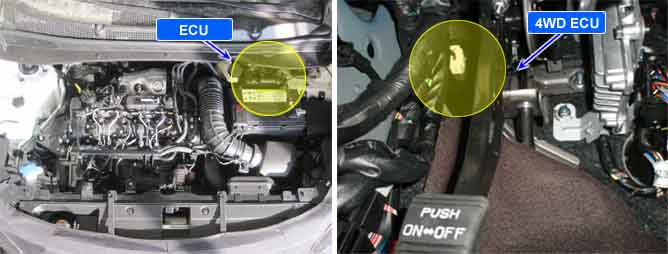

If the 4WD ECU doesn't get some data from engine ECU, it sets U0100.
Item
Detecting Condition
Possible cause
DTC Strategy
CAN Signal Check
Poor connection
Open or short in CAN communication line
Error in ECU
Enable conditions
IG KEY " ON" or Engine " ON "
Threshold value
It can't get some data from engine ECU(EMS 1/2/5 CAN message)
Detecting time
2 seconds
Fail Safe
Prohibition for 4WD control
