C2402 Motor Electrical

AutoHex Online Help: Hyundai MATRIX(FC) 2005

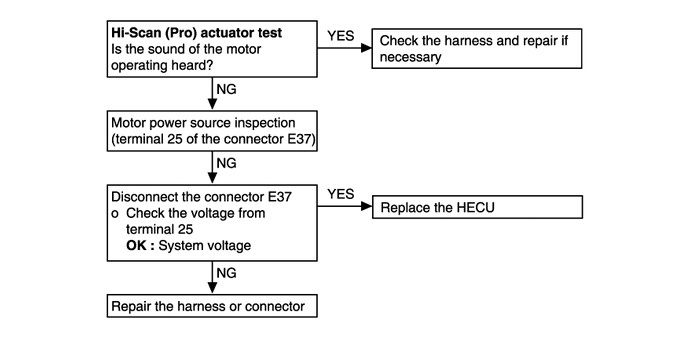

INSPECTION PROCEDURE FOR DIAGNOSTIC TROUBLE CODES

DTC No. C2402 Electrical

(Motor relay, motor)

Probable cause

When the motor power line is normal but no signal is in detected inthe motor monitor line.

Malfunction of hydraulic unit

Malfunction of HECU

caution

Powering the motor with the Hi-Scan (Pro) will discharge the battery. Start and run the engine for a while after testing is complete.
