P1671 Injector Classification-Write Error

AutoHex Online Help: Hyundai MATRIX(FC) 2005

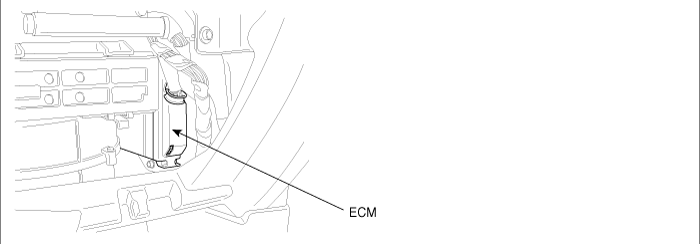

COMPONENT LOCATION
GENERAL DESCRIPTION

Classify injectors according to fuel injection quantity into 3 Class ( C1, C2, C3 ), then mount 4 injectors of a class whose injection quantities are same on a engine. By Inputting their class, It is possible to control fuel injection quantity more accurately.

C1 : the injectors whose fuel injection quantity is large, ECM compensates for surplus of fuel quantity.

C2 : the injectors whose fuel injection quantity is normal

C3 : the injectors whose fuel injection quantity is small, ECM compensates for lack of fuel quantity.



DTC DESCRIPTION

P1671 is set when 'communication error(check sum error)' occurs during initialization of ECM in EEPROM where injector class is saved. If ECM is defective this code is set.

DTC DETECTING CONDITION

Item

Detecting Condition

Possible Cause

DTC Strategy

EEPROM Monitoring

ECM internal error

Enable Conditions

IG KEY ON

Threshold Value

'Compensation Check Sum Error' during initiation

When Injector class bit 12~15 is not '0'

Diagnostic Time

Immediately

Fail Safe

Fuel Cut

YES

GLOW lamp blinks

EGR Off

NO

Fuel Limit

NO

MIL

NO

COMPONENT INSPECTION

Injector class input state check

IG KEY ON, Engine OFF.

Using scantool, select "engine control" - "injector class input"

Monitor "injector class input state" .

Is injector class value inputted to ECM displayed correctly?

? Go to "Verification of vehicle repair"

? If error is not corrected after performing "injector class input" procedure, replace ECM.

caution

When replacing ECM, perform "A/T, M/T Auto recognition" procedure and input injector class value correctly using scantool.

If this procedure is not performed, glow lamp on cluster is "ON" constantly and normal engine operation is impossible.

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault is corrected.

After connecting scantool select "Diagnostic Trouble Codes(DTCs)" mode to and then clear DTC.

Drive the vehicle within DTC Enable conditions in General information.

After selecting "Diagnostic Trouble Codes(DTCs)" mode and check DTC is recorded again.

Are any DTCs recorded ?

? Go to the DTC guide of recorded No. in scantool.

? System operates within specification.
