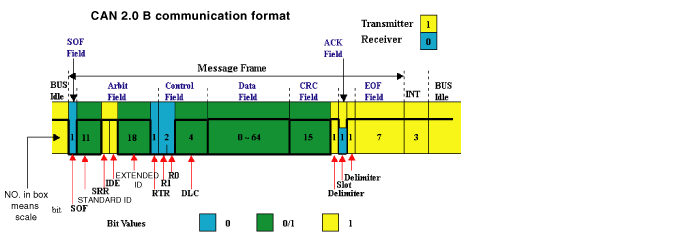

Several control units are applied to electronically controlled vehicles. These units perform each control with informations from various sensors. Thus, sharing signal information from sensors is needed, so CAN communication type whose communication speed is high and insensitive to electrical noise by spark generation is adopted to controlling power-train(engine, atutomatic transaxle, ABS, TCS, ECS)As sharing signals of engine speed, APS, engaged gear and torque reduction through CAN communication, ECM and TCM modules control vehicle actively.

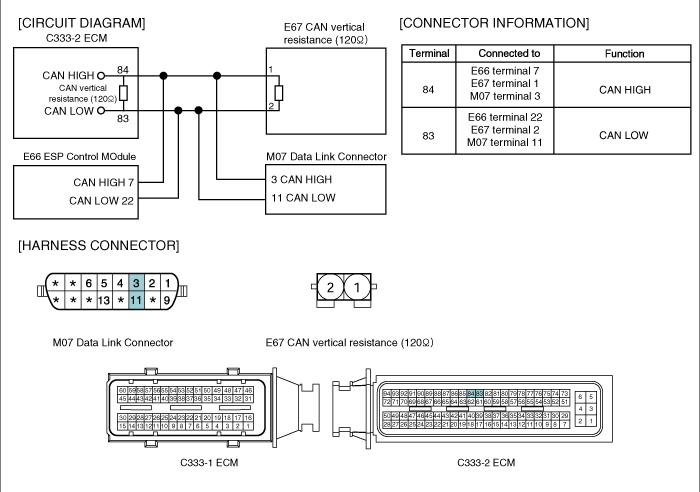

U0001 is set when signal transmission through CAN communication line is impossible for more than 0.1 sec. because of open or short to ground in CAN communication line. Checking CAN communication BUS and signals from ECM, TCM module is required.
