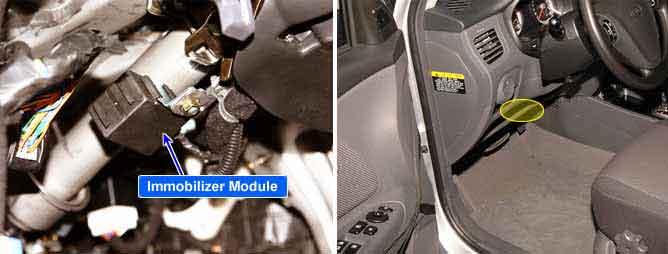

Component Location
General Description
SMARTRA type immobilizer is an anti-theft device which allows engine to turn ON only when the key recognized in Transponder is inserted in the key hall.
After checking that the inserted key is registered, immobilizer module transmits engine ON permitting signal to ECM.
If engine is tried to turn ON when nonregistered key is inserted in the key hall or no key signal is detected (buglary), immobilizer module transmits engine ON prohibitting order to ECM and injector operation is disabled.
* SMARTRA : SMARt TRansponder Antenna
DTC Description
P1610 is set when former ECM is equipped to immobilizer applied vehicle. This code exists to prevent different type of ECM from being equipped.
Refer to immobilizer system DTC guide for more detailed information.
DTC Detecting Condition
Item | Detecting Condition | Possible Cause |
DTC Strategy | ? Signal monitoring | ? Refer to DTC guide of Immobilizer system |
Enable Conditions | ? IG KEY "ON" |
Threshold Value | ? Non-Immobilizer-EMS connected to an Immobilizer |
Diagnostic Time | |
Fail Safe | Fuel Cut | NO | |
EGR Off | NO |
Fuel Limit | NO |
Check Lamp | NO |
