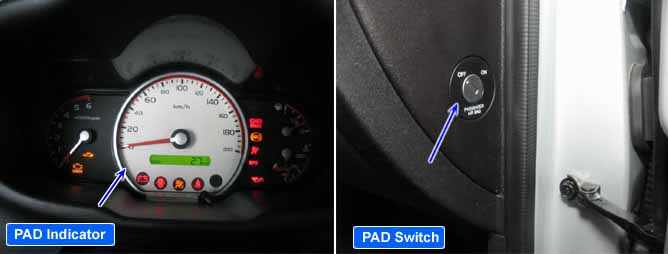

PAD Switch(Passenger airbag deactivation Switch) is the device which prevents Passenger airbag from being deployed when the passenger seat is unoccupied as driver turning OFF PAD Switch.
When PAD Switch turned OFF, " PASSENGER SRS OFF" lamp on cluster turns ON.
The above DTCs are recorded when the defect of the Passenger airbag off warning lamp is detected in Passenger airbag off warning lamp circuit.
Item
Detecting Condition
Possible cause
DTC Strategy
Check voltage
Burnt-out fuse.
Short to Battery.
Short to GND.
PADL Line Open
PADL LED open
PADL Short
Faulty SRSCM.
Enable conditions
Ignition "ON"
Diagnostic
Time
Qualification
More than 2 sec
De-Qualification
