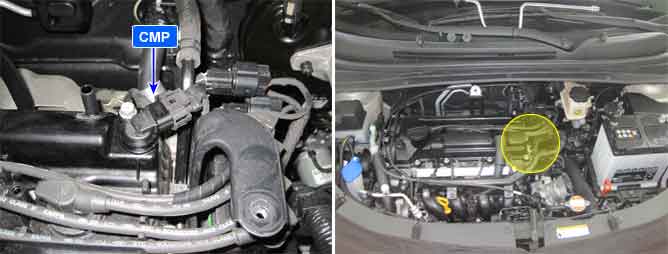

Camshaft Position Sensor (CMPS) is a hall sensor and detects the camshaft position by using a hall element. It is related with Crankshaft Position Sensor (CKPS) and detects the piston position of the each cylinder which the CKPS can’t detect. The CMPS are installed on engine head cover and uses a target wheel installed on the camshaft. This sensor has a hall-effect IC which output voltage changes when magnetic field is made on the IC with current flow. When teeth on the target wheel trigger the sensor, output voltage is 5V. If not, it is 0V. These CMP signal is sent to the ECM and used for determining the ignition timing along with CKP signal. CMPS makes Sequential Injection possible.
If signal input phase is abnormal, ECM sets DTC P0365.
Item
Detecting Condition
Possible Cause
DTC Strategy
Sensor wrong mounted. (check the assembling state)
Poor connection.
Abnormal assembling state.
CMPS
Enable Conditions
No CKP sensor error.
Gap of CKP sensor wheel detected.
Threshold Value
Counter of failure to detect toggling of phase signal level at consecutive gaps = 5.
Diagnostic Time
Continuous.
MIL ON Condition
3 driving cycle.
Fig.1) Normal waveform of IN-CMPS & Ex-CMPS at idle.
