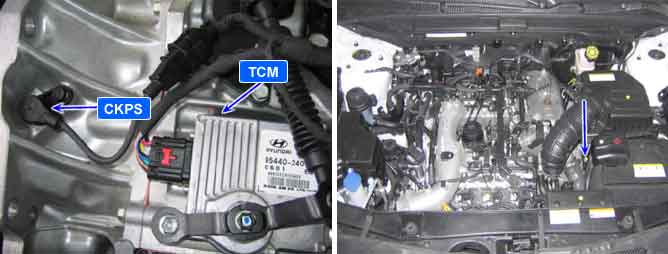

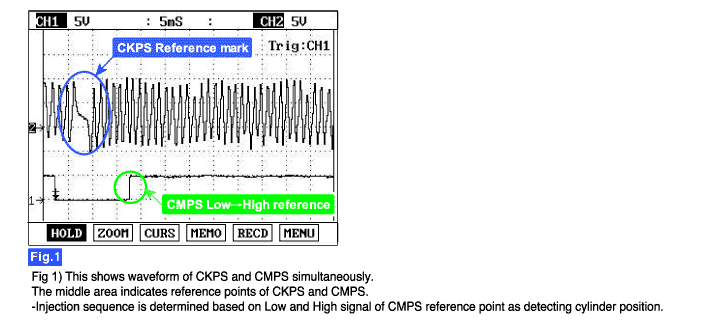

Crank Shaft Position Sensor (CKPS) is magnetic inductive type. Mounted on cylinder block, it senses tone wheel position of crank shaft. As tone wheel is divided with 58 teeth and 2 missing teeth (reference point), 1 tooth corresponds to 6 degree. CKPS which calculates RPM and crank angle is important to determine fuel injection quantity and injection timing with APS. Crank shaft position is closely related to engine starting.
P0336 is set corresponding to the condition of ECM internal counter when 1). engine speed detected by CKPS is above 6000RPM, or 2). CKPS signal pulse is abnormal. For repair, check temporary poor connection in CKPS circuit, component failure or deformation of tone wheel.
Item
Detecting Condition
Possible Cause
DTC Strategy
? Signal monitoring
? CKPS circuit
? CKPS
? Faulty crank shaft tone wheel
Enable Conditions
? During accelerating and turning engine ON
Threshold Value
? Engine speed sensed at CKPS above 6000RPM.
? Abnormal crank signal pulse.
Diagnostic Time
? Corresponding to ECM internal counter condition.
Fail Safe
Fuel cut
YES
? RPM is calculated as twice as CMPS rotation.
EGR Off
NO
Fuel Limit
Check Lamp
ON

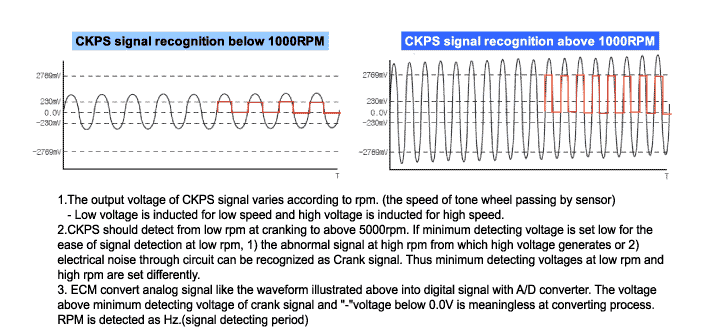

Sensor Type
Output Signal Characteristic
CKPS resistance
Air Gab
Low RPM Minimum Detecting Voltage
High RPM Minimum Detecting Voltage
Magnetic inductive
A/C waveform
774? ~ 946? (20?)
0.5 ~1.5 mm
230mV
2769 mV
