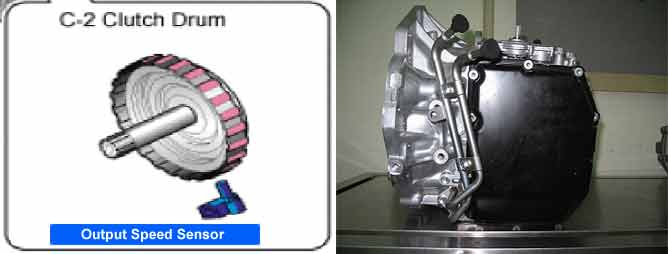

The Output Speed Sensor outputs pulse-signals according to the revolutions of the output shaft of the transmission. The Output Speed Sensor is installed inside transmission. This value, together with the throttle position data, is mainly used to decide the optimum gear position.
The TCM sets this code if the calculated value of the pulse-signal is noticeably different from the value calculated, using the Vehicle Speed Sensor output. The TCM will initiate the fail safe function if this code is detected.
Item
Detecting Condition
Possible Cause
DTC Strategy
? Check the speed range
? Faulty OUTPUT SPEED SENSOR
? Faulty PCM/TCM
? Signal circuit is open or short.
Enable Conditions
? Engine speed > 400rpm
? 10.2V < Battery voltage < 15.5V
? System is normal
? TCU communication = normal
? Shift lever switch = normal
Threshold Value
? To detect no pulse while detecting input revolution sensor signal 16 pulses
Diagnostic Time
? More than 500times × more than1sec
Fail Safe
? Self learning control is inhibited
? Locked in 3 rd gear
