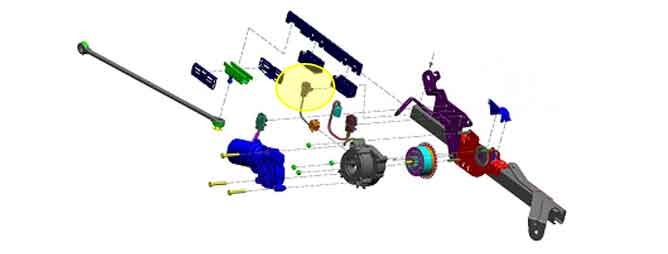

Power Tail Gate(hereinafter PTG) is the system which moves tail gate of vehicle by electronic motor so that user can open or close door with less force than required on manual operation. To monitor system operation such as speed and position of gate, PTG uses optical sensor. Optical sensor is located at channel and pinion assembly and always makes a pair to distinguish moving direction of door. Signal of optical sensor is pulse signal and used for control of motor speed,gate position and detecting obstacle.
The ECM sets DTC B1105 if power voltage of optical sensor is out of threshold range.
Item
Detecting Condition
Possible Cause
DTC Strategy
? Check Voltage
? Faulty PTG
? Faulty optical sensor
? Open or short in power harness
Enable Conditions
? IGN "ON" & ENG "OFF" & PSD "ON"
Threshold value
? 3.95V or less, 6V or more
Detecting time
? 1 sec
FAIL SAFE
? Inhibit powerdoor operation
