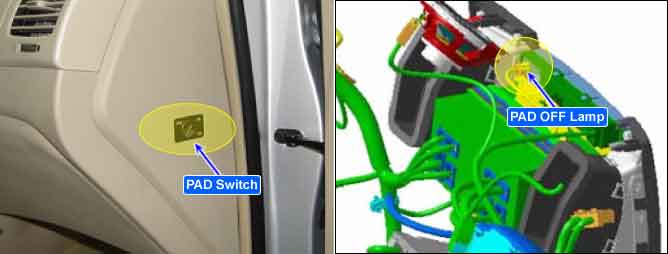

PAD Switch(Passenger airbag deactivation Switch) is the device which prevents Passenger airbag from being deployed when the passenger seat is unoccupied as driver turning OFF PAD Switch.
When PAD Switch turned OFF, " PASSENGER SRS OFF" lamp on cluster turns ON.
The above DTCs are recorded when the defect of the Passenger airbag off warning lamp is detected in Passenger airbag off warning lamp circuit.
Item
Detecting Condition
Possible cause
DTC Strategy
Check current
Burnt-out fuse.
Burnt-out airbag off warning lamp.
Open circuit in airbag off warning lamp harness.
Short circuit in airbag off warning lamp harness.
Faulty SRSCM.
Enable conditions
Ignition "ON"
Threshold value
PAD lamp wire open
PAD lamp wire short to power
PAD lamp wire short to ground
Diagnostic Time
De-Qualification
More than 0.7 sec(OPEN)
More than 0.7 sec(SHORT)
More than 2.5 sec(OPEN)
More than 0.5 sec(SHORT)
