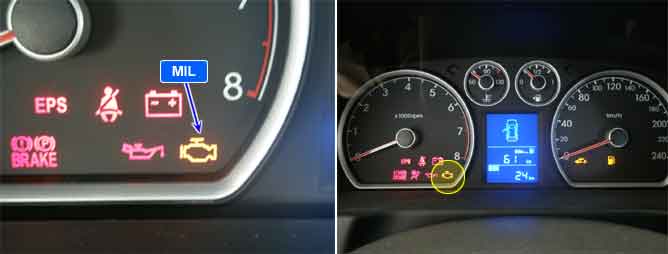

The Malfunction Indicator Lamp (MIL), which is located in the instrument cluster, comes on to notify the driver that there may be a problem with the vehicle and that service is needed. Immediately after the ignition switch turns on, the malfunction indicator lamp is lit to indicate that the MIL operates normally and goes off after starting
PCM sets DTC P0650 if the PCM detects that the MIL control line is open or short circuit to ground or battery line.
Item
Detecting Condition
Possible Cause
DTC Strategy
Electrical check
Open or short between MIL and PCM
Poor connection or damaged harness
Burned out MIL bulb
Enable Conditions
10V < Battery voltage < 16V
Threshold Value
Short to ground or battery or line break
Diagnostic Time
10 sec.
Mil On Condition
-
