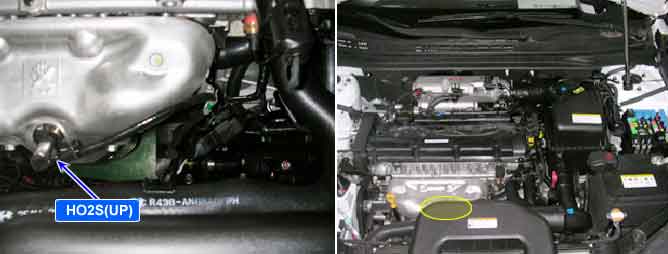

The normal operating temperature of the HO2S(Heated Oxygen Sensor) ranges from 350 to 850?(662 to 1562?). The HO2S heater greatly decreases the amount of time required for fuel control to become active. The PCM provides a pulse width modulated control circuit to adjust current through the heater. When the HO2S is cold, the value of the resistance is low and the current in the circuit is high. On the contrary, if the temperature in the resistor of the sensor rises, the current drops gradually.
The PCM determines if a front HO2S heater fault has occurred and sets DTC P0030 if the front HO2S heater control driver inside the PCM fails, if HO2S is not operational (after an elapse of predetermined time) since engine start, or when the front HO2S tip temperature is out of normal working range.
Item
Detecting Condition
Possible Cause
DTC Strategy
Evaluate O2 sensor element temperature via measuring element resistance
Related fuse blown or missing
Heater control circuit open or short
Power supply circuit open or short
Contact resistance in connectors
Faulty HO2S
Enable Conditions
11 < Battery voltage < 16V
Dewpoint exceeded
No relevant failure
Time after start elapsed:240 sec.
1% < Heater power < 99%
Exhaust gas Temp. model < 650?
Threshold Value
Element resistance > 2100 O (Element temperature < 500?)
Diagnostic Time
5 min.
Mil On Condition
2 Driving Cycles
Fail Safe
EVAP. emission control function is controlled in minimum operation mode
Temp.(?)
Heater Resistance (?)
18~20
64~82
Approx. 9
