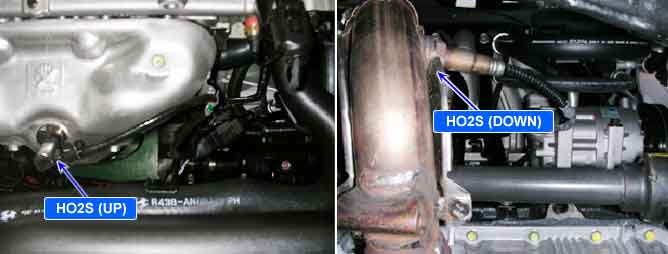

Component Location
General Description
In order to provide the best possible combination of drivability, fuel economy and emission control, the PCM uses a closed loop air/fuel metering system. The PCM monitors the HO2S signal voltage and adjusts fuel delivery based it in closed loop fuel control. Changes in fuel delivery will be indicated by the long-term and the short-term fuel trim values. The ideal fuel trim value is around 0%. The PCM will add fuel when the HO2S signal is indicating a lean condition. Additional fuel is indicated by fuel trim values that are above 0%. The PCM will reduce fuel when the HO2S signal is indicating a rich condition. Reduction in fuel is indicated by fuel trim values that are below 0%. The DTC relevant to fuel trim will be set when the amount reaches excessive levels because of a lean or rich condition.
DTC Description
If the lambda controller reaches the maximum or minimum threshold, then feedback control is no longer possible and emissions will be increased. The PCM sets DTC P2097 if no proportional post catalyst fuel trim adaptation occurs for a defined time after the lambda controller has reached its minimum threshold.
DTC Detecting Condition
Item | Detecting Condition | Possible Cause |
DTC Strategy | Monitoring deviation of fueling control (Long term + Short term)
| Three Way Catalytic Converter(TWC)
Rear HO2S
|
Enable Conditions | No relevant failure
Estimated fuel dilution in oil limited in rich side
|
Threshold Value | Lambda controller + Trim value < -25 %(more than 60sec. Within 180sec.)
|
Diagnostic Time | 60 sec.
|
Mil On Condition | 2 Driving Cycles
|
Signal Waveform & Data
GDS Display for HO2S
Test Condition | GDS Parameter |
HO2S SNSR VOL.-B1/S1 | HO2S SNSR VOL.-B1/S2 |
Normal Value when circuit is normal | Idle after warm up | Signal is switching from rich(above 0.45V) to lean(below 0.45V) a minimum of 3 times in 10 seconds. | above 0.7V |
HO2S(B1S1) signal circuit open | Approx. 0.43~0.45V | - |
HO2S(B1S2) signal circuit open | - | Approx. 0.43~0.45V |
MAPS Terminal voltage with pressure
Pressure (kPa) | Approx. 20 | Approx. 35 | Approx. 60 | Approx. 95 | Approx. 101 |
Voltage(V) | Approx. 0.7~0.8 | Approx. 1.3~1.4 | Approx. 2.3~2.4 | Approx. 3.7~3.8 | Approx. 3.9~4.1 |
GDS Display for TPS
Test Condition | GDS Parameter |
TPS VOLTAGE |
Normal value with ignition "ON" & engine "OFF" | Accelerator pedal released | 0.20~0.47V |
Normal value with engine ON & accelerator pedal fully depressed | 4.2~4.7V |
Abnormal value with ignition "ON" & engine "OFF" | Power circuit open | 0.01V |
Ground cicuit open | 4.99V |
TPS signal circuit open | 4.99V |
TPS signal circuit short to ground | Approx. 0V |
TPS signal circuit short to battery | Above 4.99V |
