P1525 Sensor Supply Voltage 2 - High Input
AutoHex Online Help: Hyundai ACCENT(LC) 2003

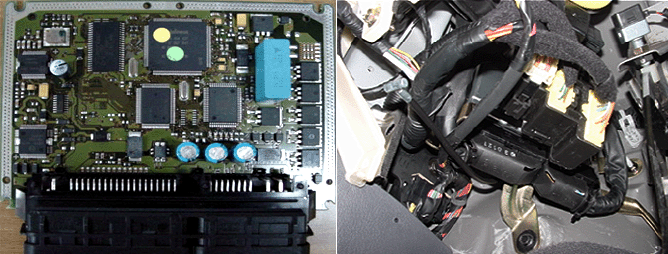

Component Location
Description
1. General Description
The computer has one of the management functions that is the voltage supply to the sensors. The sensor supply voltage 2 is fed to the APS 2 and the RPS to be used to operate the sensors.
2. DTC Description
If the ECM is reading an uncharacteristic sensor supply voltage to the APS 2 and the RPS during two driving cycles, this code will be set.
DTC Detecting Condition
DTC NO. | Detecting Condition | Possible Cause |
P 1524 P 1525 | ? P 1524 Sensor supply voltage < 4.7 V ? P 1525 Sensor supply voltage > 5.2 V ? Engine Condition : IG ON ? Fuel Limit : YES ? Fuel Cut : NO ? EGR OFF : NO ? MIL : NO ? LIMP HOME MODE Engine speed is fixed as 1200 rpm without the accel position sensor action. | ? Open or short in circuit ? ECM |
