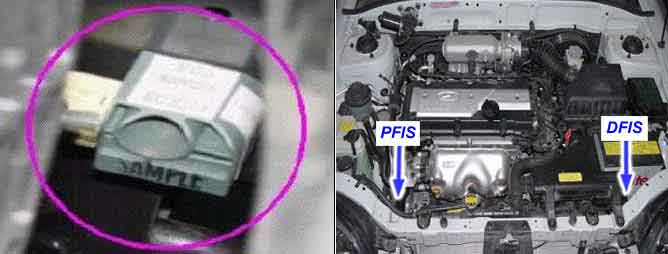

The release system for the front airbag consists of a SRSCM installed in the middle of the vehicle and two front impact sensor (FIS) which are located in front of the vehicle. Only the SRSCM is capable of releasing the airbags or the seat-belt pretensioner system in the vehicle. In the dialog between the SRSCM and the front impact sensor it is the SRSCM which takes the release decision. The SRSCM is supported in connection with the front airbag function by the two front impact sensor, which act as intelligent acceleration sensors and as such back up the central airbag controller. Both the front impact sensors continuously report the current system status of the vehicle to the SRSCM. If one of the two front impact sensor reports an acceleration level, the SRSCM must verify the acceleration signal internally by means of a suitable plausibility check. The SRSCM does not release the appropriate airbag unless the result of this verification is positive.
The above DTCs are recorded when the communication error of the DFIS is detected in the DFIS circuit.
Item
Detecting Condition
Possible cause
Enable conditions
? Ignition "ON"
? Faulty DFIS circuit.
? Faulty DFIS.
? Faulty SRSCM..
Threshold value
? When the DFIS communication is error.
Diagnosis time
Qualification
? More than 4 sec
De-Qualification
? More than 9.6 sec
