The purpose of the System Voltage is to detect an excessively low or high system voltage that may be caused by a malfunctioning charging system..

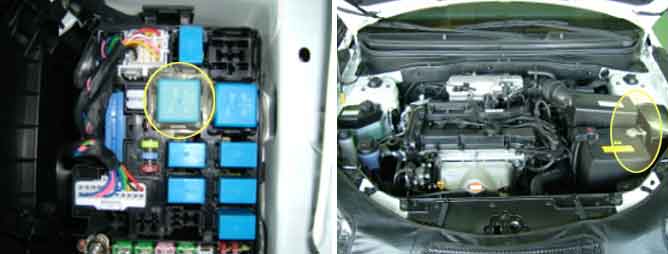

System Voltage is the ignition voltage potential at the Powertrain Control Module (PCM) PCM measures and compares voltage from ignition key and each relay. With this mechanism, PCM knows if the main relay switch turns on after IG on or if turns OFF after IG off.
If ECM detects malfunction in power supply system, ECM sets DTC P0560.
Item
Detecting Condition
Possible Cause
DTC Strategy
? Rationality check
? Poor connection
? Open / Short
? Main relay
? ECM
Enable Conditions
Threshold Value
Diagnostic Time
MIL ON Condition
? DTC only
