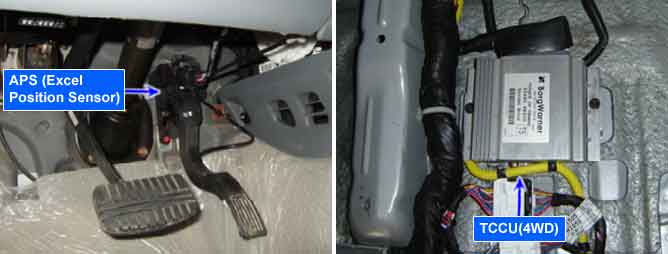

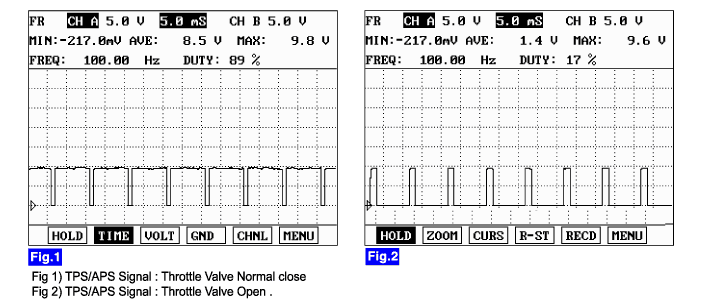

TPS is a signal to judge the amount of depressing accel and this is inputted into TCCU from engine ECM with PWM signal. Together with speed sensor signal ,TPS signal is a reference to decide torque distribution amount to front and rear wheels.
As related to TPS,this trouble code is set if TPS signal is out of range.
Item
Detecting Condition
Possible Cause
DTC Strategy
? TPS loss of signal
? ECM,TCCU connector looseness and poor terminal to wire connection.
? TPS PWM circuit open/short.
? Faulty TPS .
? Faulty ECM .
? Faulty TCCU .
Enable Conditions
? Duty cycle in range for 1 S,fault is self clearing
Threshold Value
? 3>DC>97%
Diagnostic Time
? 1 sec
MIL on condition
? No Flash
Fail Safe
? TOD Determined by wheel slip only
