P1614 ECU Software Error
AutoHex Online Help: Hyundai TERRACAN(HP) 2004
TROUBLESHOOTING FOR DTC
DTC | P1614 | ECM Programming Error |
CC-CODE | 85 | ECM internal fault |
83 | ECM internal fault |
8b | ECM internal fault |
88 | ECM internal fault |
87 | ECM internal fault |
8a | ECM internal fault |
8c | ECM internal fault |
8a | ECM internal fault |
DTC DETECTING CONDITIONCC-CODE | Detecting Condition | Suspect Area |
85 | Impossibility of reading on the EEPROM
| Injector control line ECM
|
83 | Impossibility of writing on the EEPROM
|
8b | Electrical interference on the injector control line
|
88 | Fault in the calibration file or in the software.
|
87 | One or more cells are found to be defective during the testing of the cells of the entire RAM used by the ECM Incorrect injector specific data
|
8a | Watchdog operation fault
|
8c |
8a |

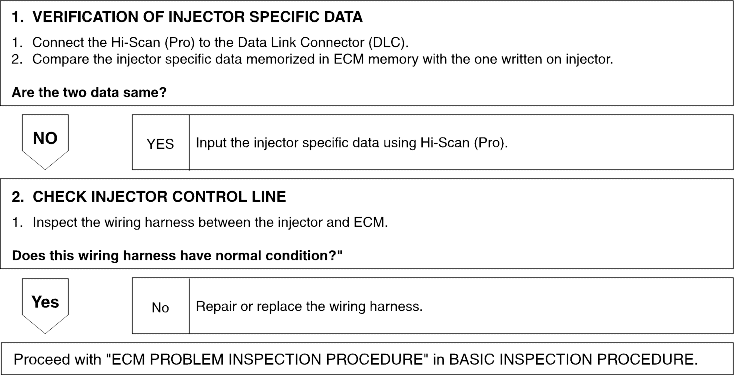

[CASE 1] CC-CODE 8a, 8c, 83, 85, 87, 88
[CASE 2] CC-CODE 8b
