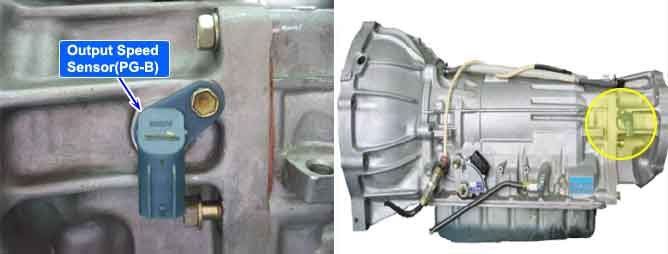

The OUTPUT SPEED SENSOR(PG-B) outputs waveform signals according to the revolutions of the output shaft of the transmission. The OUTPUT SPEED SENSOR(PG-B) is installed in front of the Transfer Drive Gear and determine the Transfer Drive Gear rpms by calculating the frequency of the pulses. This value, together with the throttle position data, is mainly used to decide the optimum gear position.
The PCM/TCM sets this code if the calculated value of the signals is noticeably different from the value calculated, using the Vehicle Speed Sensor output, when the vehicle is running faster than 30 km/h. The PCM/TCM will initiate the fail safe function if this code is detected.
Item
Detecting Condition
Possible Cause
DTC Strategy
? Monitoring speed range
? Signal circuit is open or short.
? Sensor power circuit is open
? Sensor ground circuit is open
? Faulty OUTPUT SPEED SENSOR
? Faulty PCM/TCM
Enable Conditions
? After 2.5sec is passed from "N?D"
? Shift lever position = "D","2","L"
? Vehicle speed = 5 KPH
? No fail with others relation sensors(input speed sensor, inhibitor switch, solenoid valve)
Threshold Value
? OUTPUT SPEED = 0rpm
Diagnostic Time
? Input no signal over the 500 times
Fail Safe
? Locked into 3rd or 2nd gear.
? Manual shifting is possibe(2 nd ? 3 rd ,3 rd ? 2 nd)
Input shaft & Output shaft speed sensor
? Type : Magnetic Inductive Type
? sensor body and sensor connector have been unified as one.
