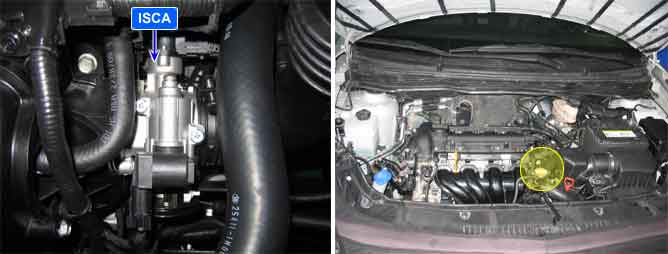

The ISCA (Idle Speed Control Actuator) is designed to maintain a steady desired idle speed. Idle airflow is adjustedthrough the idle air actuator in order to maintain the desired idle speed under various load conditions. Load conditions vary due to numerous factors, such as engine temperature, air conditioning, electrical load and power steering load.
If there is Short to power in ISCA(opening coil) circuit, ECM sets DTC P1506.
Item
Detecting Condition
Possible Cause
DTC Strategy
Circuit continuity check, high (opening coil)
Poor connection
Short to power in control circuit
ISCA
Enable Conditions
Vehicle speed = 0
Coolant temperature > 70?
Intake air temperature > -6?
Idle status
No error on the related sensors. (PCSV,VSS,ECTS,IATS,etc)
Threshold Value
Shorted to battery voltage
Diagnostic Time
Continuous
MIL ON Condition
3 driving cycle
Specification
Opening Coil Resistance (O)
11.1 ~ 12.7 [20 ? 68 ?]
Closing Coil Resistance (O)
14.6 ~ 16.2 [20 ? 68 ?]
