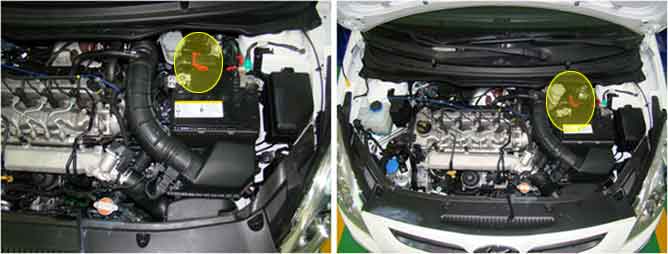

Component Location
General Description
Atmospheric sensor is installed in ECM and senses atmospheric pressure where the vehicle is.
Based on singal of atmospheric sensor, air density is calculated. And atmospheric sensor is used to detect mass air flow with MAFS, IATS.
This sensor is required to perform 1) fuel injection quantity correction in high altitude and 2) EGR control.
Atmospheric pressure is fixed at 900hpa when atmospheric sensor fails.
DTC Description
P2229 is set when the voltage above 4.88V - maximum output voltage of Barometric pressure sensor - is detected for more than 5sec.. This code is due to fhe failure of the sensor inside of ECM.
DTC Detecting Condition
Item | Detecting Condition | Possible Cause |
DTC Strategy | Voltage Monitoring
| Atmospheric pressure sensor (ECM component)
|
Enable Conditions | IG KEY "ON"
|
Threshold Value | When output voltage is above the maximum value. (above 4.88V)
|
Diagnostic Time | 12.5sec
|
Fail Safe | Fuel Cut | NO | Barometric pressure is fixed at 900hpa.
|
EGR Off | YES |
Fuel Limit | YES |
MIL | NO |
Specification
1atm is same ashpa (hecto pascal) | mb | mmHg |
1013 | 1013 | 760 |
