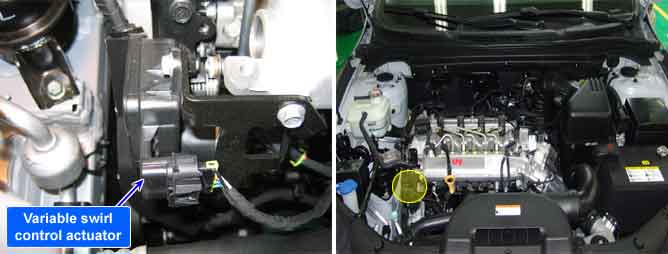

Variable swirl control actuator consists of DC motor and motor position sensor(potentiometer) which detects the position of swirl valve.

As closing one intake port out of two at idle and below 3000RPM, swirl effect is taken on intake air. This swirl effect increases air flow rate.

However, because air flow rate is too high, swirl effect is neglectable thus, swirl valve is opened for efficient intake of air.

To prevent swirl valve and shaft form being stuck by foreign metarial, and to learn max opening and closing position of swirl valve, it is fully opened and closed twice at turning engine OFF.

? Swirl

The air flow which indicates Intake air swirls with respect to the axis passing through the centre of piston with length-direction by intake port which is eccentric from the centre of combustion chamber.

P2015 is set if variable swirl valve position fails to reach target position within 1 sec. while ECM already outputted motor driving signal(swirl valve fully open or close signal). This code is due to 1)swirl valve shaft stuck or problem of link device or 2)variable swirl valve position sensor output value stuck.

Fig.1) Waveform when variable swirl valve closed at idle. Channel A is (+) and B is (-).

Fig.2) Waveform when variable swirl valve opened at above 3000RPM. Channel A is (-) and B is (+).
