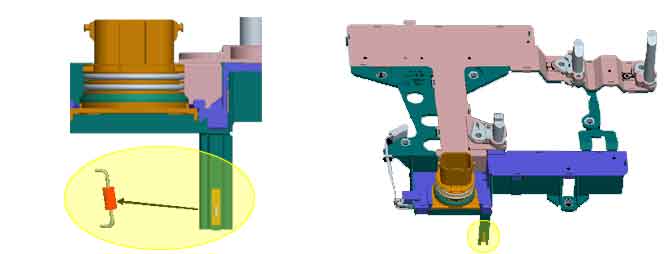

Transmission oil temperature sensor is installed at valve body. This sensor is used thermistor which is changed by temperature variation. If PCM/TCM supplied about 3.3 voltage to sensor, then sensor output value is changed by ATF temperature variation. Transmission oil temperature sensor is very important for Transmission and sensor value is input to PCM/TCM and That information (sensor value) is important used for Damper clutch, Detected Non performance area, Controlled oil temperature variation and oil pressure at change of speed and other use.
This code is set when oil temperature sensor value is input lower specification to PCM/TCM.
Item
Detecting Condition 1
Possible Cause
DTC Strategy
Circuit low
Circuit short or open
Oil temperature sensor
PCM/TCM
Enable Conditions
Battery voltage > 10V
Engine speed > 400RPM
Threshold value
Oil Temperature Sensor > 180?
Detecting Time
More than 5 sec & 2 D/C
Fail safe
Oil temperture fixed at 80?
Teaching / Fuzzy not allowed
Oil Temperature
Sensor
TEMP.(?)
RESISTANCE(k?)
-40?
Approx. 139.5
80?
Approx. 1.08
-20?
Approx. 47.4
100?
Approx. 0.63
0?
Approx. 18.6
120?
Approx. 0.38
20?
Approx. 8.1
140?
Approx. 0.25
40?
Approx. 3.1
160?
Approx. 0.16
60?
Approx. 1.98
