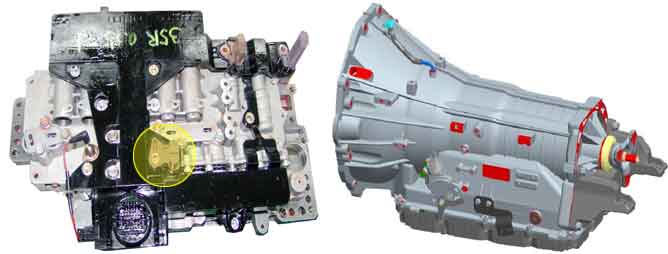

Input/output speed sensor is one body and installed in transmission. It's used hall sensor of an electric current type, and current is changed by magnetic variation. Each sensors are composite 2 pins and PCM/TCM supplied power to sensor and controled by PCM/TCM.
This code is set when vehicle speed is above 20km/h but output speed signal is not detected by Output speed sensor.
Item
Detecting Condition
Possible Cause
DTC Strategy
Circuit no signal
Signal citcuit open/short
Power supplied citcuit open/short
Output speed sensor
PCM/TCM
Enable Conditions
Battery voltage > 10V
Engine speed > 400rpm
TR switch = "D"range or Sports mode
Threshold value
Output speed = 0rpm
Detecting Time
More than 4sec & 2 D/C
Fail safe
Locked into 5th gear
Sports mode 2 <-> 3 <-> 4 <-> 5 possible
Teaching not allow
Input/Output speed sensor : 2PIN(Supplied Power : 9V, Waveform of grating : 0.7~1.4V )
Fig 1) D range 1st
Fig 2) D range 4th
