SLT controls linear throttle pressure by control signal from TCU and line pressure for clutched and brakes to reduce shift shock.
TCM set this code If feedback current lower than 92mA.
Item
Detecting Condition
Possible Cause
DTC Strategy
Check the current range

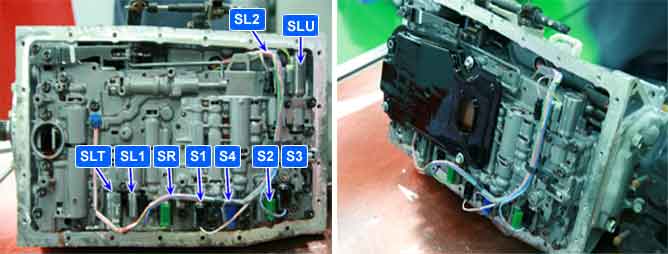

Line pressure solenoid valve(SLT)
Wiring harness(SLT)
TCM
Enable Conditions
10.2V < Battery voltage < 14V
Not error in system
CAN communication : normal
No detection of B+ short.
Threshold Value
Feedback current < 92mA for 100ms continuously.
Diagnostic Time
More than 0.5 second.
Fail Safe
Fixed at 4th gear.
Measuring Position
Resistance (20?)
Signal - Ground
5.0 ~ 5.6 ?
Fig 1) D Range-1st gear
Fig 2) D Range-2nd gear
Fig 3) Sports mode -1st gear
Fig 4) Sports mode -2nd gear
Fig 5) Sports mode -3rd gear
Fig 6) Sports mode -4th gear
Fig 7) Sports mode -5th gear
Fig 8) Sports mode -6th gear
Fig 9) Reverse
