The Output Speed Sensor outputs pulse-signals according to the revolutions of the output shaft of the transmission. The Output Speed Sensor is installed inside transmission. This value, together with the throttle position data, is mainly used to decide the optimum gear position.
The TCM sets this code if the calculated value of the pulse-signal is noticeably different from the value calculated, using the Wheel Speed Sensor output.(MIL ON : 2 driving Cycle)
Item
Detecting Condition
Possible Cause
DTC Strategy
Check signal range
Faulty in Mechatronics (Valve-body + TCM)
Enable Conditions
CASE1
Sensor supply power : normal
No electrical error in sensor
CASE2
Transmission condition = friction locked
Input speed sensor : normal
?Input speed/ gear ratio - output speed|=200rpm
CASE3
Not shifting to "D" or "R"
Power supply, Input speed sensor, Wheel speed sensor : normal
Threshold Value
Siganl value > 10000 rpm
Difference with last speed and real speed > -1000rpm
Difference with Wheel speed sensor > 500rpm
Difference with Input speed sensor > 200rpm
Diagnostic Time
1second
Fail Safe
Using Wheel speed
No learning control
Keep the present gear
Fixed at 3rd gear
(In case of CASE2 : possible to normal shifting)
(priority : 3)
The function with the higher priority will aiways take precedence. However, a low-priority is not overruled by a higher priority function.
Functions from different priority categories can also run in parallel. It is important to note which function will take precedence in this case.
In such an event it is possible for a substitute function with low priority not be carried out if a second, higher-priority function is present. This has been taken into account when compiling the priority list and is international.
The mechanical emergency run function must always have the highest priority, since from the electrical standpoint it is the only safe condition.

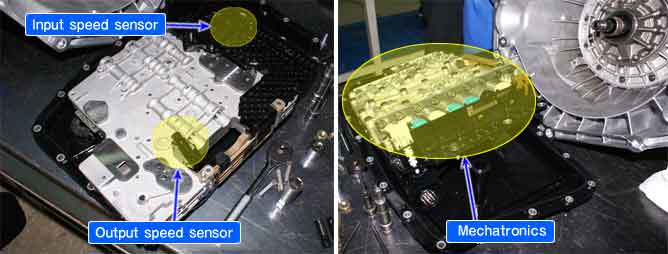

Fig 1) Output speed sensor
