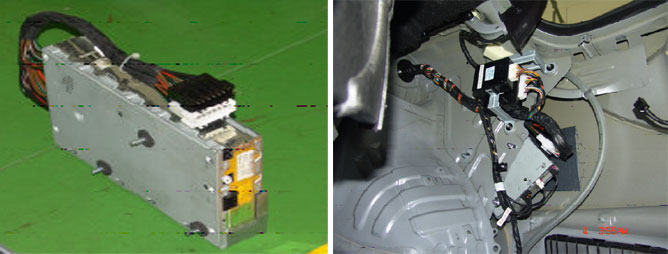

The Power Tuner will be applied to domestic, China and general markets. It has some functions like below1. Speech signal transmission by Most communication 2. FM/AM Tuner and Power Amplifier Combined 3. Embedded FM double tuner 4. Antenna diversity function applied for improvement in reception 5. 11 channel audio amplifier (Logic 7)
This code is set when the head unit detecte a defect by self diagnosis.
Item
Detecting Condition
Possible Cause
DTC Strategy
Self diagnosis
Tuner & Amplifier
Enable Conditions
IG ON
Threshold value
Watchdog error
Detecting time
IG ON or By self test
