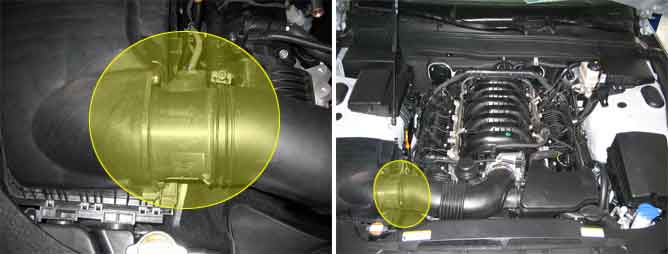

The Mass Air Flow Sensor (MAFS) is located between the air cleaner assembly and the throttle body. The MAFS uses a hot film type sensing element to measure the mass of intake air entering the engine. This hot film type air flow sensor consists of a hot film sensor, housing and metering ducts. Mass air flow rate is measured by detection of heat transfer from a hot film probe. The change in air flow rate causes change in the amount of heat being transferred from the hot film probe surface to the air. A large amount of intake air represents acceleration or high load conditions while a small amount of intake air represents deceleration or idle. The mass of intake air should increase at acceleration and be stable during constant engine speed. The ECM uses this information to determine the injection duration and ignition timing for the desired air/fuel ratio.
If the deviation between the inlet air mass by MAF signal and the ECM model value is out of the threshold value, ECM sets P0101.
Item
Detecting Condition
Case1
DTC
Strategy
Range Check
Clogged air cleaner
MAFS
Enable
Conditions
Crank rev. 150rev
Threshold
Value
Mass flow >1200kg/h or < -200kg/h
Diagnostic
Time
2 sec
Case2
Rationality Check
TPS >15% , Engine speed >1500rpm
or TPS <4% , Engine speed < 800rpm
Mass Flow /Max Model Mass Flow > 5.26%
or Min Model Mass Flow/Mass Flow >4%
Case3
Stuck Check
ETC NO Error
Delta Mass Flow < 2kg/h
MIL ON Condition
2 driving cycle
Fig.1) Normal waveform of MAFS at idle.
Fig.2) Normal waveform of MAFS at acceleration.
