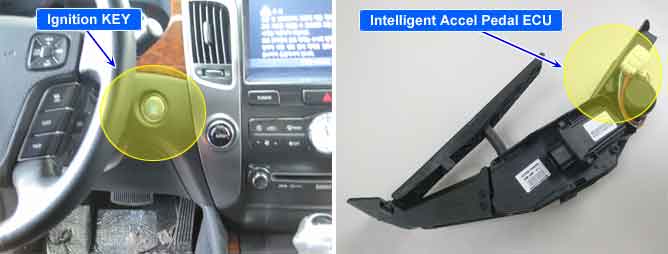

Intelligent Accel Pedal System is monitoring input voltage whether power supply which is required to operate nomally is fulfilled or not, and determining to stop the work if input voltage does not meet the normal operating voltage range, or exceed.
Intelligent Accel Pedal stores C1105 error code and stops operating if input supply voltage to ECU is lower than normal operating voltage.
Item
Detecting Condition
Possible cause
DTC Strategy
Monitoring ignition voltage
Poor connection
Open or short of power supply curcuit
Faulty Alternator
Open or short of charging curcuit
Enable conditions
Ignition on
Threshold value
Ignition voltage is lower than 8.5V
Diagnostic Time
0.5sec
Fail Safe
No warning
Restoration conditions
Ignition voltage is normal range.
