The Fuel Level Sensor(FLS) measures the fuel level in fuel tank and its information is used to supply the ECM with information regarding the monitoring condition of the EVAP canister purge system for leak detection. If the fuel level sensor is monitored for high or low stuck or difference between voltage of fuel level sensor and voltage deviation of fuel level sensor is exceeds limited value while driving, this is interpreted by the ECM as a fault
Checking output signals of fuel level sender under detecting condition, if the fuel level voltage is low than 0.386V, ECM sets P2067.
Item
Detecting Condition
Possible cause
DTC Strategy
Signal check, low
Poor connection
Open or short to ground in signal circuit
Faulty Fuel Sub Sender
Faulty Fuel Sender
Faulty ECM
Enable Conditions
9V < B+ volt < 16V
Engine speed > 500 rpm
Threshold value
Signal voltage < 0.386V
Diagnosis Time
5 sec
MIL On Condition
2 driving cycles

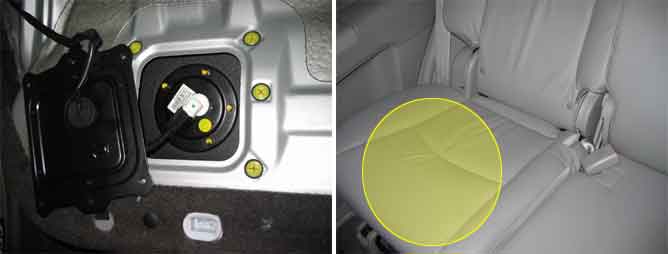

FLS
Normal Parameter
Float position
8/8
6/8
1/2
3/8
1/8
Warning Lamp ON
Sender-
Resistance(?)
4±1
16.6±1
58.2±1
71.6±1
Sub Sender-
53±1
95±1
-
Fuel volume(l)
70.5
52.5
37.5
30.0
14.5
9.5
