By actuating of flaps in the intake passage the passage at the inlet valve of the cylinder can be narrowed.
This reduces the air flow. The flaps in the intake passage are controlled by the intake throttle actuator.
Calculation of the duty cycle for the inlet passage shut-off can switched on and off by the function switch of the inlet passage shut off.
If the engine speed and the demand quantity + low idle governor exceed certain thresholds, also the MAFS signal must be above a threshold. If this is not the case, the error "flap blocked closed" is recognized.
If the engine speed and the control duty cycle exceed certain thresholds, the digital switch of the inlet passage shut off must be actuated. If it is, the error flap blocked open is recognized.

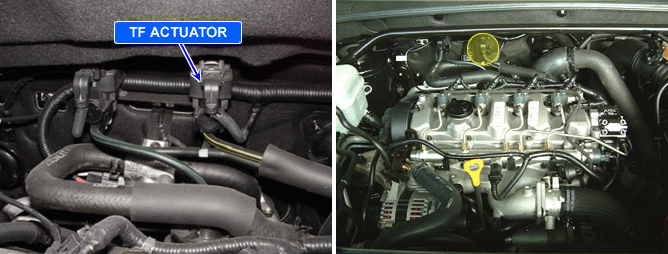

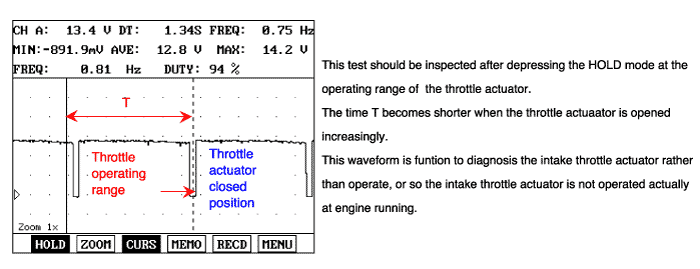

In case of the throttle actuator stuck, the engine symptoms will occur a running engine stall and a starting impossible.
If the signal generates threshold value, the ECM judged this as a fault and DTC is set.
Item
Detecting Condition
Possible Cause
DTC Strategy
? Circuit continuity check
? Open or short in power circuit
? Open or short in control circuit
? Faulty throttle actuator
? Faulty ECM
Enable Conditions
? Engine run
Threshold Value
? Open or short for relay control circuit
Diagnostic Time
? 0.48 sec.
MIL
Fuel Limit
Fuel Cut
EGR Off
? No
? Yes
