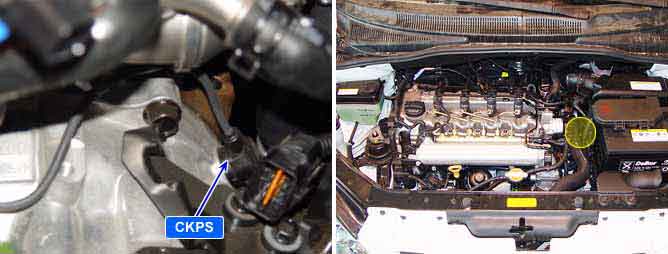

Crank Shaft Position Sensor(CKPS) is magnetic inductive type. Mounted on transaxle hausing, it senses tone wheel position of fly wheel.
As tone wheel is devided with 58 teeth and 2 missing teeth (referrence point), 1 tooth corresponds to 6 degree.
CKPS which calculates RPM and crank angle is important to determine fuel injection quantity and injection timing with APS.
Crank shaft position is closely related to engine starting.
P0336 is set when 1). engine speed detected by CKPS is above 6000RPM, or 2). CKPS signal pulse is abnormal. For repair, check temporary poor connection in CKPS circuit, component failure or deformation of tone wheel.
Item
Detecting Condition
Possible Cause
DTC Strategy
? Signal monitoring
? CKPS circuit
? CKPS component
? Abnormal deformation of Crank Shaft tone wheel
Enable Conditions
? During accelerating and turning engine "ON"
Threshold Value
? Engine speed sensed at CKPS above 6000RPM
? Abnormal crank signal pulse
Diagnostic Time
? Immediately
Fail Safe
Fuel Cut
YES
EGR Off
NO
Fuel Limit
Check Lamp
Sensor Type
Output Signal Characteristic
Air Gab
Low RPM Minimum Detecting Voltage
High RPM Minimum Detecting Voltage
Magnetic inductive
A/C waveform
1.8mm
230mV
2769 mV
The output voltage of CKPS signal varies according to rpm(the speed of tone wheel passing by sensor)
( low voltage is inducted for low speed and high voltage is inducted for high speed. )
CKPS should detect from low rpm at cranking to above 5000rpm. If minimum detecting voltage is set low for the ease of signal detection at low rpm, 1) the abnormal signal at high rpm from which high voltage generates or 2) electrical NOise through circuit can be recognized as Crank signal. Thus minimum detecting voltages at low rpm and high rpm are set differently.

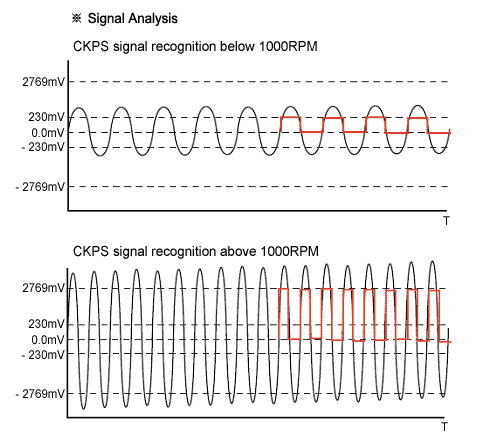

ECM convert analog signal like the waveform illustrated above into digital signal with A/D converter.The voltage above minimum detecting voltage of crank signal and "-"voltage below 0.0V is meaningless at converting process. RPM is detected as Hz.(signal detecting period)
