EPS uses an electric motor to provide directional contol to the driver. EPS CM has a charging circuit to supply current to a motor temoporarily.
EPS CM sets this code and turns on warning lamp if charged voltage is too low due to a abnormal charging circuit. At that time EPS CM inhibits it's own function.
Item
Detecting Condition
Possible cause
DTC Strategy
? Check voltage
? Poor connetion in power circuit
? Poor connection in ground circuit
? Over charging
Enable conditions
? IG ON
Threshold value
? Charging circuit voltage too low
Fail Safe
? Waring lamp ON, EPS control is inhibited
Restoration conditions
? Normal condition after IG on ? off

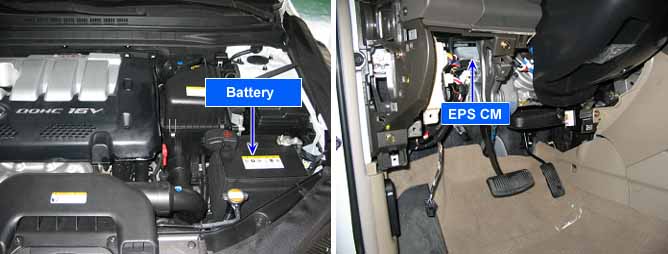

Bat. Voltage
IG Key ON
ENG. ON
Approx. 11.8 [V]~12.5 [V]
Approx. 12.5 [V] ~ 14.5 [V]
