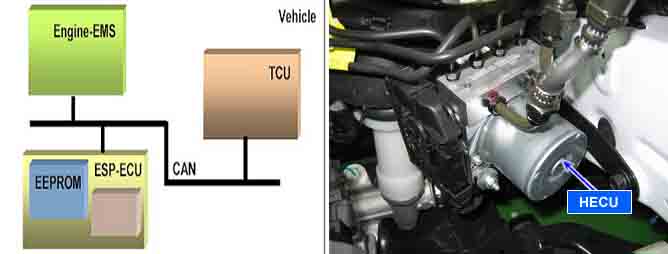

Component Location
General Description
There is no hardware difference of the HECU according to the vehicle’s specification, just software is changed by the vehicle parameter used for ESP control.
The HECU stores a classified variant code value according to the received data(a kind of engine, engine displacement, a kind of T/M). After then the HECU read a various parameter according to the stored variant value in the memory to use for the ESP control.
DTC Description
The HECU checks the varient code after ignition. If a inappropriate varient code is detected or there is no varient code, a fault is detected.
DTC Detecting Condition
Item | Detecting Condition | Possible cause |
DTC Strategy | ? Internal monitoring | ? Replacement of EMS, T/M ECU |
Monitoring Period | ? Once during startup. |
Enable Conditions | ? During intialization, there is no inputed valid varient code. ? The EEPROM didn’t have variant coed. ? Receieved variant code is invalid. ? There is a difference between pre-inputted variant code and re-inputted variant code. |
Fail Safe | ? The ABS/EBD/ESP functions are inhibited. ? The ABS/EBD/ESP warning lamps are activated. |
