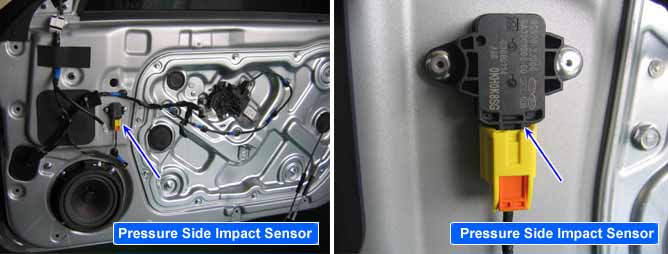

Pressure-Side Impact Sensor and Side Impact Sensor are installed in the left and the right side of front door and in the lower of B-pillar respectively.
The Pressure-Side Impact Sensor senses an impact based on an acceleration at crashing.
Unlike the conventional acceleration sensor, the Pressure Sensor senses an air pressure by a distorted door at crashing and measures an impact.
The SCM detects the impact signals of the Pressure-Side Impact Sensor and Rear Side Impact Sensor and compares with signals of the safe sensor inside. If the signals of all sensors are judged as a collision, the side-airbag and the curtain-airbag would be unfolded.
At inspecting the pressure sensor, keep the door airtight for an exact measuring.
The SRSCM sets DTC B1742 if there is any error in communication between Pressure-Side Impact(Driver) and SRSCM.
Item
Detecting Condition
Possible cause
DTC Strategy
Check Data
Faulty Pressure-Side Impact(Driver) circuit.
Faulty Pressure-Side Impact(Driver).
Faulty SRSCM.
Enable Conditions
Ignition "ON"
Threshold Value
Pressure-Side Impact no acceleration data, and line voltage is ok (between 3V and 11V)
Diagnostic
Time
Qualification
Ini(Start Up):2.5 ~ 3.1s (2 times)
Steady:500 µs x 8 + 2.3~2.9s (2 times)
De-Qualification
1 time
