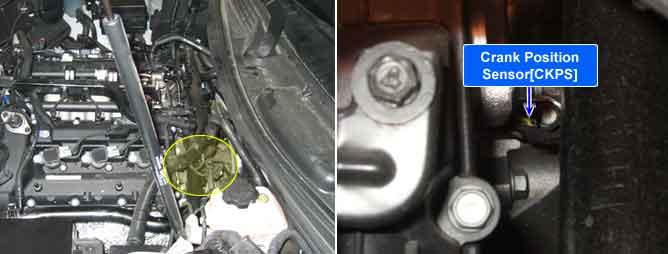

Component Location
General Description
The Crankshaft Position Sensor (CKPS) is a magnetic field sensitive type sensor that generates voltage using a sensor and a target wheel mounted on the crankshaft; there are 58 slots in the target wheel where one is longer than the others. When the slot in the wheel aligns with the sensor, the sensor voltage outputs low. When the metal (tooth) in the wheel aligns with the sensor, the sensor voltage outputs high. During one crankshaft rotation there are 58 rectangular signals and one longer signal. The ECM calculates engine RPM by using the sensor’s signal and controls the injection duration and the ignition timing. Using the signal differences caused by the longer slot, the ECM identifies which cylinder is at top dead center.
DTC Description
Checking tooth error correction under detecting condition, if the TEC(Tooth Error Correction) is out of Threshold value, ECM sets P0315.
DTC Detecting Condition
Item | Detecting Condition | Possible Cause |
DTC Strategy | This DTC indicates that crankwheel tooth error has not been learned.
| loosened CKPS
Target wheel
ECM
|
Enable Conditions | 10% = Engine load < 90%
2000 rpm = engine speed = 4000 rpm
TEC(Tooth Error Correction) RPM stability timer > 10sec
0?(32°F) < coolant temperature < 110?(230°F)
Not active disabling faults
|
Threshold value | Distance driven without learning(during fuel cut off) tooth error = 4000km
Acutal Value is higher or lower than calibrated value
|
Diagnosis Time | -
|
MIL On Condition | NO MIL ON(DTC only)
|
