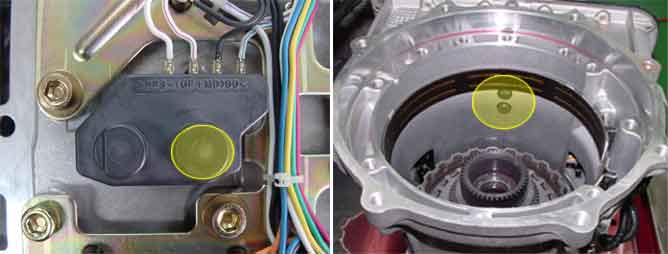

The Input Sensor of RXC Auto transmission is composed of S1(Sensor1) and S2(Sensor2). S1 inputs signal to TCM only at 4th gear and S2 does at 1st, 2nd, 3rd, 4th and 5th gear.
Therefore, sensing pulse frequency outputted from sensor 2, TCM calculates Inputshaft speed and compute Turbine rotation.. This value is mainly used to control the optimum fluid pressure during shifting.
The TCM sets this code if an output pulse-signal is not detected, from the INPUT SPEED SENSOR 1 or 2, when the vehicle is running faster than 40km/h. The Fail-Safe function will be set by the TCM if this code is detected.
Item
Detecting Condition
Possible Cause
DTC Strategy
Lack of circuit Continuity
Open or shrot in signal circuit
Open in power circuit
Open in ground circuit
Faulty Input speed sensor 1. 2
Faulty TCM
Enable Conditions
Battery Voltage > 10V
Output Speed Sensor >1000rpm
Engine RPM(1st gear) >3000 rpm
Engine RPM (2.3.4.5th gear) >700 rpm
Shift Lever = "D"
Threshold Value
Input Speed 1 = 100rpm
Diagnostic Time
More than 2sec.
Fail Safe
Nt(Turbine speed 1) : fixed as 600rpm
Sports mode Inhibition
5th gear Shifting Inhibition
Inhibition of pressure adaptation
Torque Conveter Clutch : OFF
NAME
T01-3 PIN No.
Measurement Condition
Spec.
Turbine Sensor 1
6
1st gear
20km/h
IDLE S/W OFF
Approx. 1.1K(Hz)
Turbine Sensor 2
7
4th gear
50km/h
Fig 1) 1st gear in D range
Fig 2) 4th gear in D range
