BCM(PAS) is a parking assistant system. It has a supersonic sensor which radiates supersonic to front and rear side of the vehicle to detect supersonic reflected from an obstacle. It calculates distances between vehicle and obstacle if it detects reflected supersonic. It warns being obstacle to drivers through buzzer or displaying on cluster according to distance from obstacle. Warning level is divided into 3 step (warning level rises progressively according to distance from obstacle)

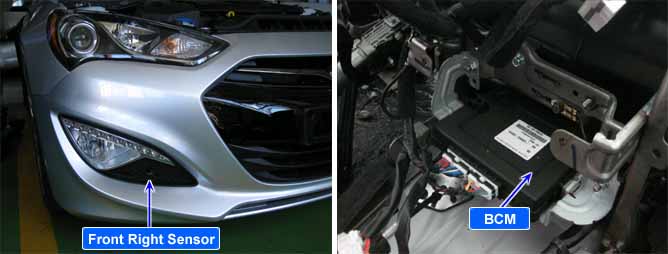

This code reports an error in LIN line. The purpose is to verify the status of BCM(PAS), Sensor and Wire when error is detected at PAS of Front Right Side Sensor.
Item
Detecting Condition
Possible Cause
DTC Strategy
Signal output of Front Right Side Sensor and LIN line checking(10ms)
TX line of Front Right Side Sensor open or poor connection
Ground line of Front Right Side Sensor open or poor connection
Power line of Front Right Side Sensor open or poor connection
Replace a sensor after checking a wire of Front Right Side Sensor
Enable Conditions
IG KEY ON, Shift lever D
Threshold Value
Front Right Sensor fault
LIN communnication fault
Poor connection
LIN line open
Diagnostic Time
Immediately
DTC Erasing Time
DTC is erased immediately after trouble fixed
Fig.1) Normal waveform(1) when obstacles is detected by sensor at shift lever D after IGN1 ON
